    Home >> Products >> NI-MH& NI-CD charger

NI-MH&NI-CD Battery charger

General Introduction
These Smart Chargers are specially designed to safely and quickly recharge the NiMH/NiCD battery packs. Automatically sensing the packs' voltage, it adjusts its current (AMP) output accordingly and later automatically shuts itself off when the pack is fully recharged. Be equipped with a smart LED that indicates charging condition; Be with Short circuit protection, Battery reverse connection protection and over voltage protection/Temp Protections.

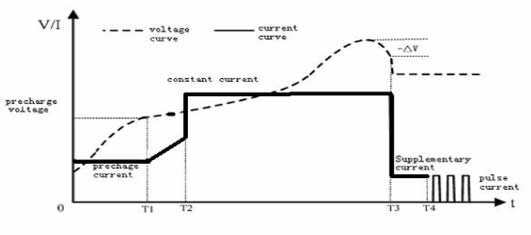

Charging process description(Single cell for example)

0-T1:
Wake up stage. When the voltage of the cell is lower than 1.0V±0.1V, the charger will use pre-charge current to charge the battery.
T1-T2:
Current ramp up stage. When the voltage reach to 1.0V±0.1V, charge current will ramp up from wake up current, and at the end of this stage, the current will be set to fast charge value by the MCU.
T2-T3:
Constant current stage. Charge battery with fast charge current, until the condition of -△V（3~5mV）voltage, △T（18℃）or Tmax（60℃）occured, Constant current stage ends.
T3-T4:
Trickle charging stage. The charger will use supplementary current to charge the battery.
T4-:
After the trickle charging stage, the red charging light goes out and the green-light turns on. If the battery has been detected is full-charged, the charger will use pulsed current to charge the battery to balance the loss of battery self-discharge.


Specification:
Input Voltage: 85VAC~264VAC, 47~63 Hz
Features:
• Use MCU to control the charge cycle;
• Accurate minus delta voltage(-△V), △V/△t,0△V detecting, ensure fully charging but avoid of over-charging;
• Able to auto distinguish bad battery and indicate malfunction;
• Able to activate over-discharged cells;
• Current ramp-up way benefits cell capacity and life cycle;
• Unique test mode guarantees high quality;
• Charger indicator: Red on charging, Green on fully charged;
•Short circuit, over-current, over-time protection;
• Compatible with CE, Rohs, UL,FCC and TUV;

NI-MH/NI-CD Smart chargers Model list

8W Wall-plug NI-MH/NI-CD Smart Charger

Output Model:
• 3.6VDC, 1.5A  Ni-MH/Ni-CD Battery Smart Charger (3 cells in series)
• 7.2VDC, 0.8A  Ni-MH/Ni-CD Battery Smart Charger (6 cells in series)
• 9.6VDC, 0.6A  Ni-MH/Ni-CD Battery Smart Charger (8 cells in series)
• 12VDC, 0.5A   Ni-MH/Ni-CD Battery Smart Charger (10 cells in series)
12W Desktop NI-MH/NI-CD Smart Charger

Output Model:
• 7.2VDC, 1A    Ni-MH/Ni-CD Battery Smart Charger (6 cells in series)
• 9.6VDC, 0.8A  Ni-MH/Ni-CD Battery Smart Charger (8 cells in series)
• 12VDC, 0.8A   Ni-MH/Ni-CD Battery Smart Charger (10 cells in series)
12W Wall-plug NI-MH/NI-CD Smart Charger

Output Model:
• 7.2VDC, 1A     Ni-MH/Ni-CD Battery Smart Charger (6 cells in series)
• 9.6VDC, 0.8A   Ni-MH/Ni-CD Battery Smart Charger (8 cells in series)
• 12VDC, 0.8A   Ni-MH/Ni-CD Battery Smart Charger (10 cells in series)

20W Desktop NI-MH/NI-CD Smart Charger

Output Model:
• 7.2VDC, 2A      Ni-MH/Ni-CD Battery Smart Charger (6 cells in series)
• 9.6VDC, 1.5A    Ni-MH/Ni-CD Battery Smart Charger (8 cells in series)
• 12VDC, 1.3A    Ni-MH/Ni-CD Battery Smart Charger (10 cells in series)


60W Desktop NI-MH/NI-CD Smart Charger

Output Model:
• 4.8VDC~9.6VDC, 1A/2A/4A   Ni-MH/Ni-CD Battery Smart Hybrid Charger (4/5/6/7/8 S)
• 7.2VDC~12VDC, 1A/2A/3A    Ni-MH/Ni-CD Battery Smart Hybrid Charger (6/7/8/9/10 S)
• 18VDC/24VDC, 1.5A          Ni-MH/Ni-CD Battery Smart Hybrid Charger (15/20 S)
• 24VDC, 1.5A                 Ni-MH/Ni-CD Battery Smart Charger (20 cells in series)

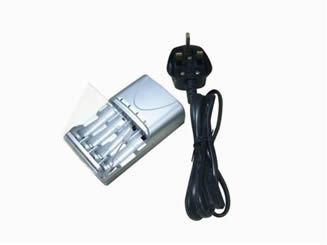

Interchangeable input Plug AA/AAA charger

Specification:
• Input Voltage: 85VAC~264VAC, 47~63 Hz
• Rating output voltage: 1.2VDC
• Constant charging current:
AA: 1A(1-2pcs), 0.7A(3pcs), 0.6A(4pcs)
AAA: 0.5A(1-2pcs), 0.425A(3pcs) 0.35A(4pcs)
Features:
• Suitable for 1 to 4pcs of AA / AAA Ni-MH & Ni-CD Rechargeable Battery.
 • Microprocessor-controlled Negative Delta V with overcharge protection.
• Built-in protection from overheating of battery.
• Auto cut off protection• Detection of defective battery.
• Wake-up function for over discharged cells.• Individual charging channel.
• Short circuit, over-current, over-temperature, over-time protection
• Compatible with UL,FCC

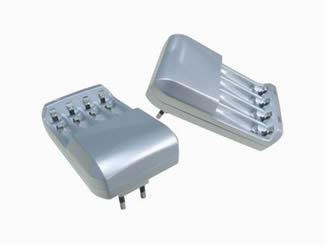

Wall-plug 4 AA/AAA battery charger

Specification:
• Input Voltage: 85VAC~264VAC, 47~63 Hz
• Rating output voltage: 2.4VDC
• Constant charging current:     AA: 0.83A;    AAA: 0.415A.
Features:
• Suitable for AA/AAA batteries design 2C2S method
• Microprocessor-controlled Negative Delta V with overcharge protection.
• Built-in protection from overheating of battery.
• Auto cut off protection• Detection of defective battery.
• Wake-up function for over discharged cells.• Individual charging channel. • Short circuit, over-current, over-temperature, over-time protection
• Compatible with UL, FCC and TUV approved
